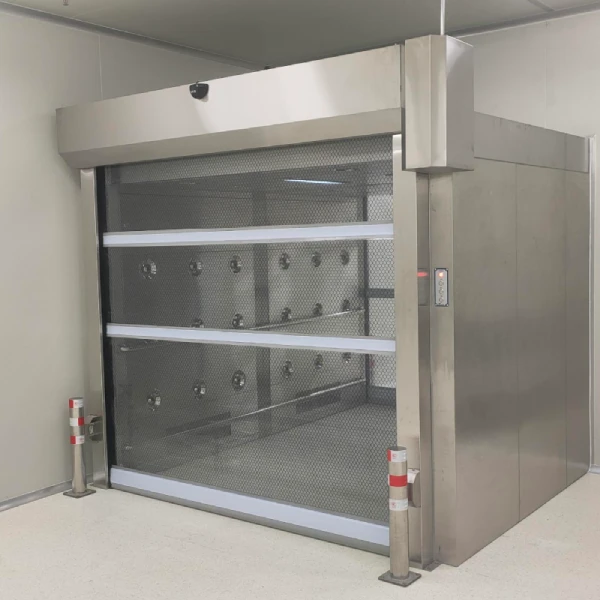

Ruang Mandi Udara Kargo / Barang Terowongan Mandi Udara

Product Overview

The Cargo Air Shower Room is a heavy-duty contamination control unit designed specifically for cleaning pallets, cartons, drums, equipment, and raw materials before they enter a cleanroom or controlled environment. It directs high-velocity HEPA-filtered air through adjustable nozzles to remove dust, particles, and fibers from external surfaces of incoming goods.

This unit is essential for facilities where material transfer poses a contamination risk, ensuring that only clean items pass into the production area.

Key Features

• Large Internal Clearance

  Oversized dimensions accommodate standard pallets (800×1200 mm), drums, trolleys, and even small forklifts.

• High-Efficiency Filtration

  Equipped with HEPA or ULPA filters (≥99.99% efficiency at 0.3 µm or 0.1 µm) to deliver particle-free air jets.

• Interlocked Doors

  Heavy-duty magnetic or electronic interlocks prevent both entry and exit doors from opening simultaneously, maintaining cleanroom pressure and preventing cross-contamination.

• Multi-Directional Air Nozzles

  Strategically placed stainless steel or ABS nozzles on side walls, ceiling, and optionally the floor to ensure complete surface coverage (360° cleaning).

• PLC Control System with HMI

  Industrial-grade controller with adjustable cycle time (15–300 seconds), emergency stop, automatic cycle start, cycle counter, and audible completion alarm.

• Rugged Industrial Construction

  Manufactured from 304 stainless steel (or 316L for corrosive environments) with seamless welding and rounded corners for easy cleaning.

• Energy-Saving Operation

  Low-noise blower with standby mode and timer-controlled shutdown reduces power consumption between cycles.
