Hood aliran laminar bersih
Gambaran keseluruhan:

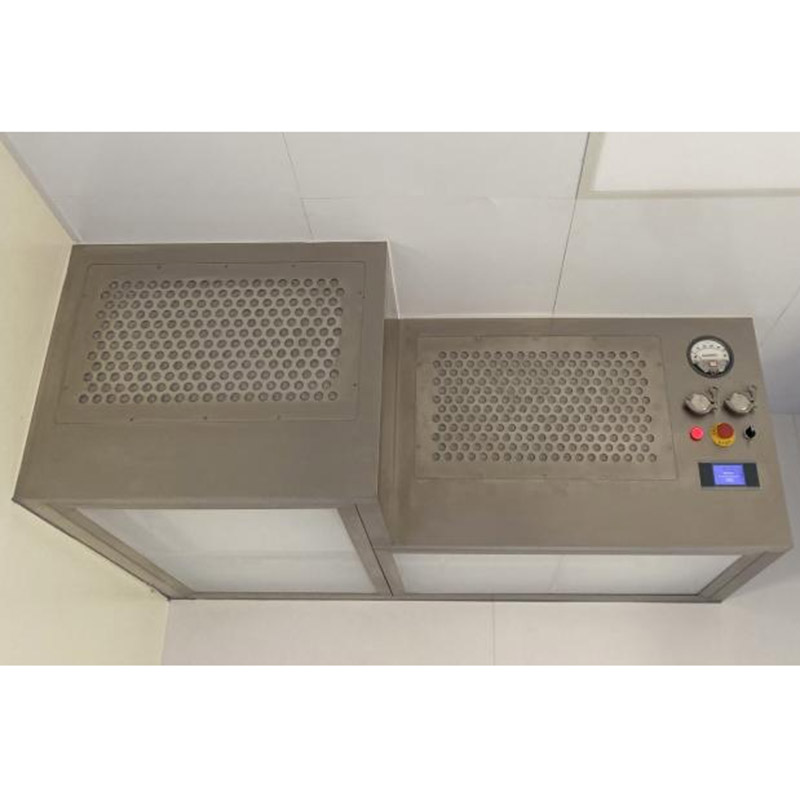

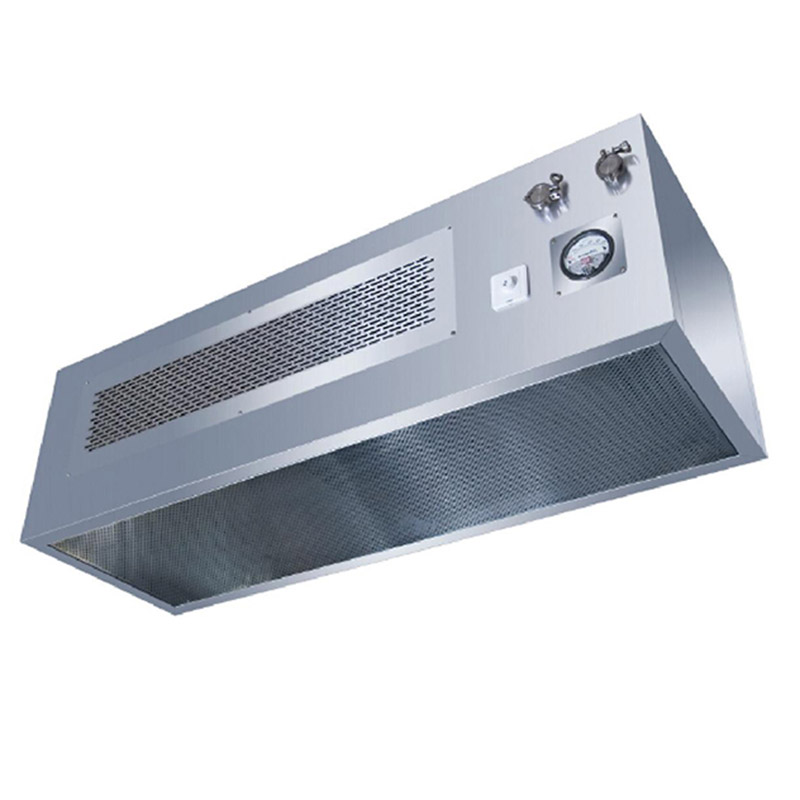

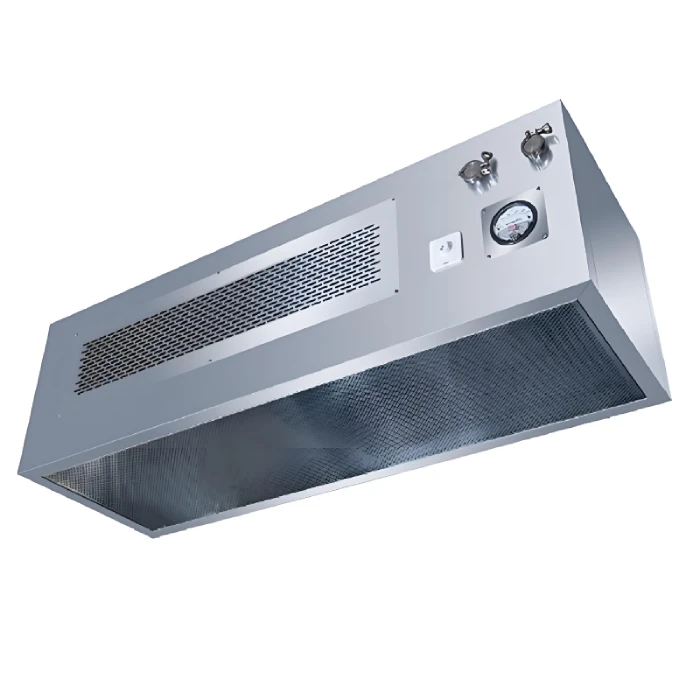

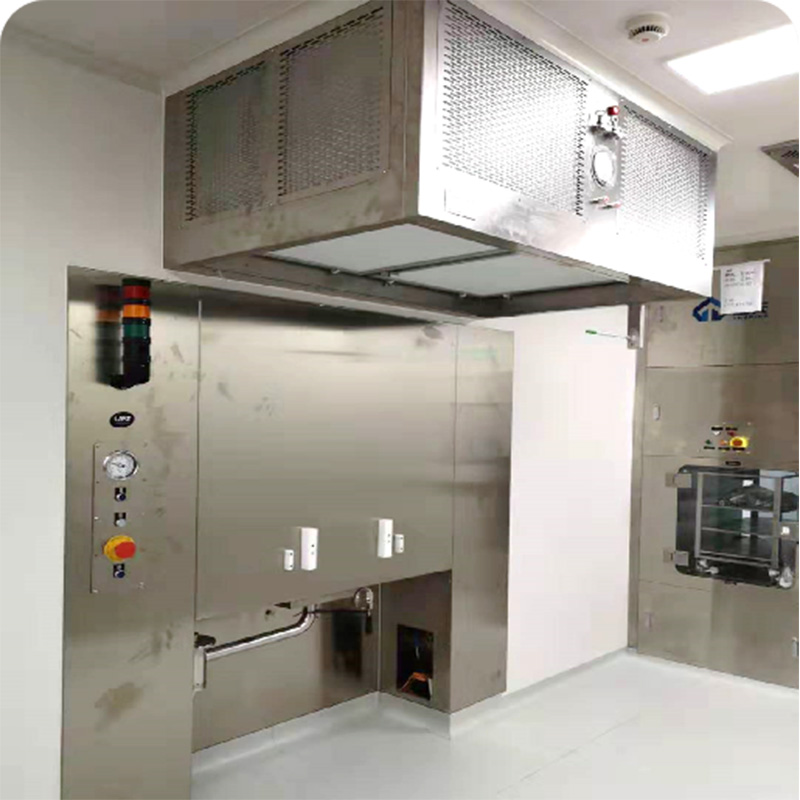

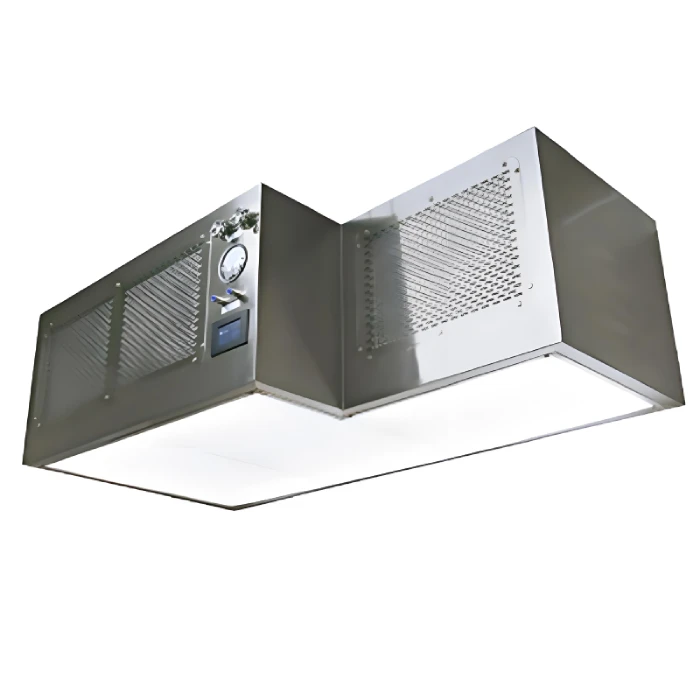

Penutup aliran laminar yang dimurnikan adalah unit pemurnian udara yang dapat menyediakan lingkungan bersih secara lokal, dapat diinstal secara fleksibel di atas titik proses yang membutuhkan kebersihan tinggi.
Kata kunci:
Detail:
Introduction detail:
Purified laminar flow cover is an air purification unit that provides a local clean environment. It can be flexibly installed above the process point where high cleanliness is required. It can be used alone or in combination to form a strip-shaped clean area.Purified laminar flow cover passes the air through a high-efficiency filter at a certain wind speed to form a uniform flow layer, so that the clean air is vertically unidirectional, thereby ensuring the cleanliness of the process area.
Features:
●The cabinet is made of high quality SUS304 stainless steel, which is easy to clean;
● Top air supply, high efficiency filter efficiency ≥99.99%@0.3um, the operating area purification level is higher than the room cleanliness;
● The inverter adjusts the wind speed ; the button controls the lighting and power.
Parameter:
|
Technical reference |
|
|
Material |
Stainless steel panel |
|
Features |
Hanging type landing support type |
|
Applications |
Precision Machinery, Electronics, Pharmaceuticals, Food, Fine Chemicals Usage, purification |
|
Usage |
purification |
|
Average wind speed |
0.25-0.45m/s (adjustable) |
|
Noise |
≤62dB(A) |
|
Power supply |
220V 50HZ |
|
Certification |
ISO9001:2008; SGS |
Pertanyaan yang Sering Ditanyakan
1
Berapa lama booth harus berjalan sebelum digunakan?
Aktifkan dan jalankan selama minimal 20 menit sebelum digunakan untuk menetapkan pola aliran udara yang tepat dan mencapai tingkat kebersihan yang diperlukan.
2
Bagaimana kerja booth timbang tekanan negatif?
Area kerja beroperasi di bawah tekanan negatif relatif terhadap area latar belakang. Kebersihan statis sama dengan kebersihan area latar belakang. Tutup port knalpot untuk menciptakan tekanan positif untuk mencapai kebersihan statis Kelas A.
